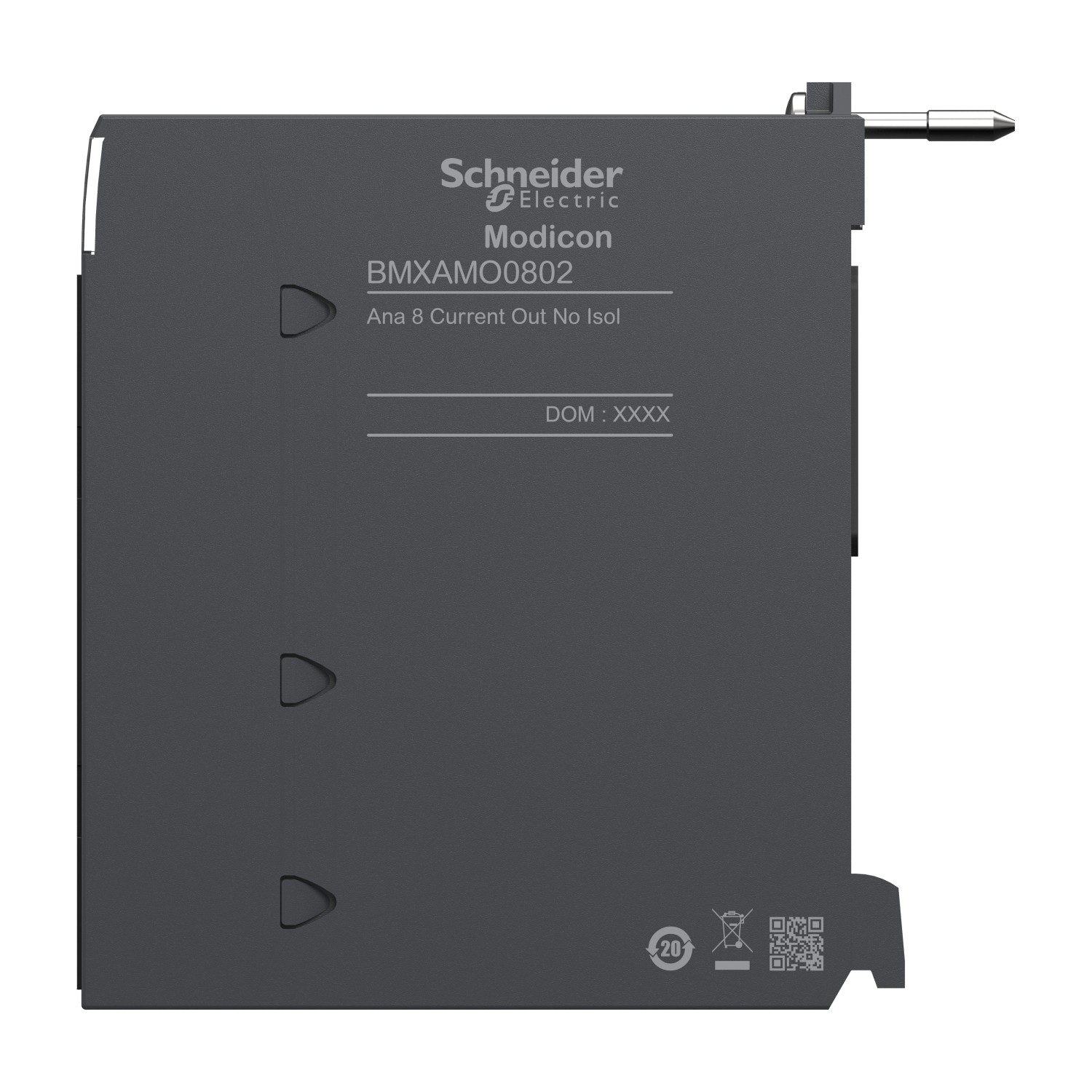

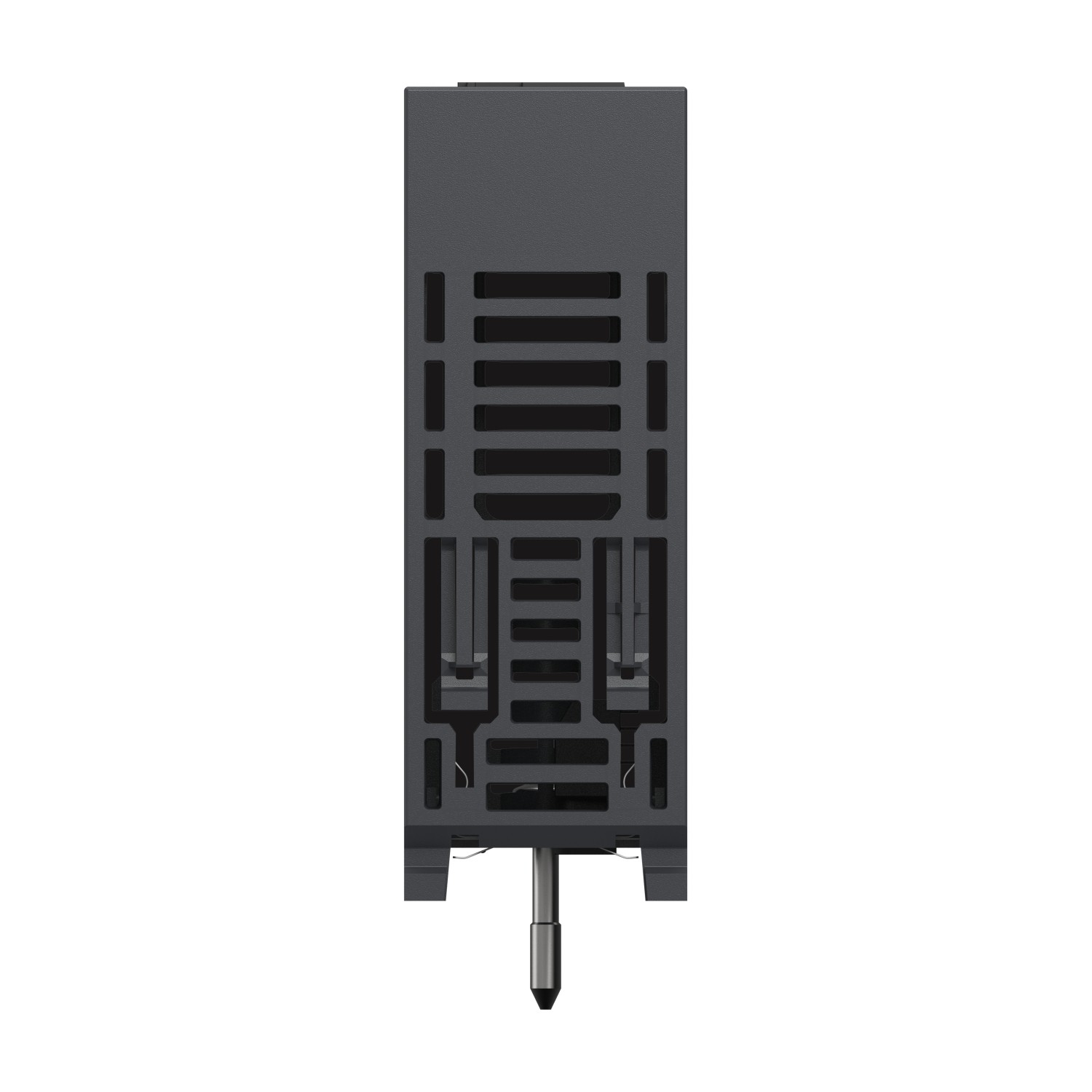

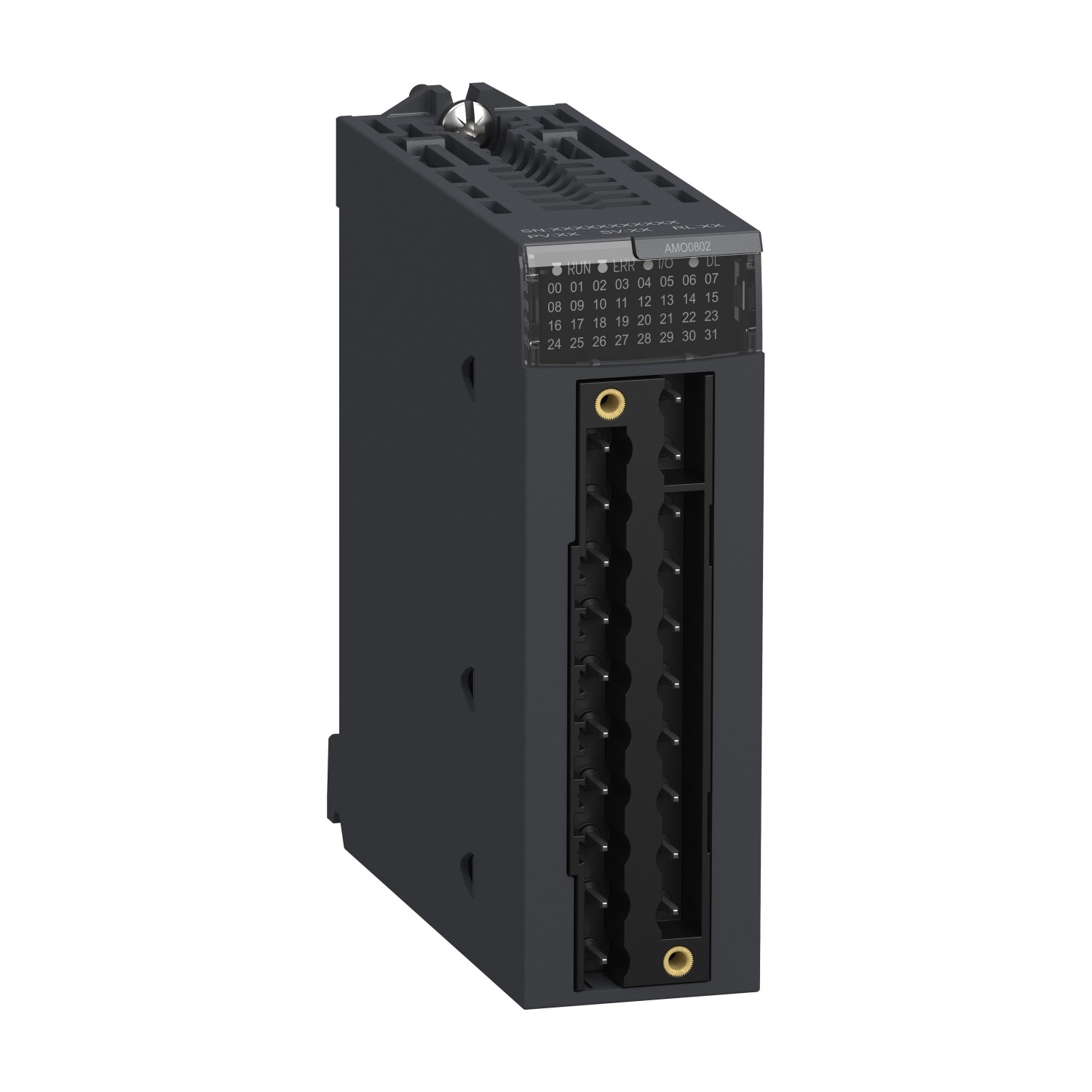

range of product

Modicon X80

Product or component type

Analog output module

Electrical connection

20 ways 1 connector

Isolation between channels

Non isolated

Analogue input resolution

16 bits

Measurement error

<= 0.25 % of full scale 0...60 °C
0.1 % of full scale 25 °C

Temperature drift

45 ppm/°C 0...20 mA
45 ppm/°C 4...20 mA

Minimum crosstalk attenuation

80 dB

Common mode rejection

80 dB

Isolation voltage

1400 V DC between channels and ground
1400 V DC between channels and bus

Detection type

Open circuit 4...20 mA
Short circuit 0...20 mA

Load impedance ohmic

<= 350 Ohm 0...20 mA
<= 350 Ohm 4...20 mA

Output level

High level

analogue output number

8

Analogue output type

Current: 0...20 mA
Current: 4...20 mA

Analogue output resolution

16 bits

supply

Internal power supply via rack

Conversion time

<= 4 ms

Maximum conversion value

0...21 mA 0...20 mA
0...21 mA 4...20 mA

Fallback mode

Configurable
Predefined

MTBF reliability

1500000 H

Operating altitude

0...2000 m
2000...5000 m with derating factor

Status LED

1 LED (green) RUN
1 LED per channel (green) channel diagnostic
1 LED (red) ERR
1 LED (red) I/O

Net weight

0.15 kg

Power consumption in W

3.6 W 24 V DC typical
3.9 W 24 V DC maximum
0.35 W 3.3 V DC typical
0.48 W 3.3 V DC maximum

Current consumption

150 mA at 3.3 V DC
135 mA at 24 V DC
