HMIG3U

HMIG3U

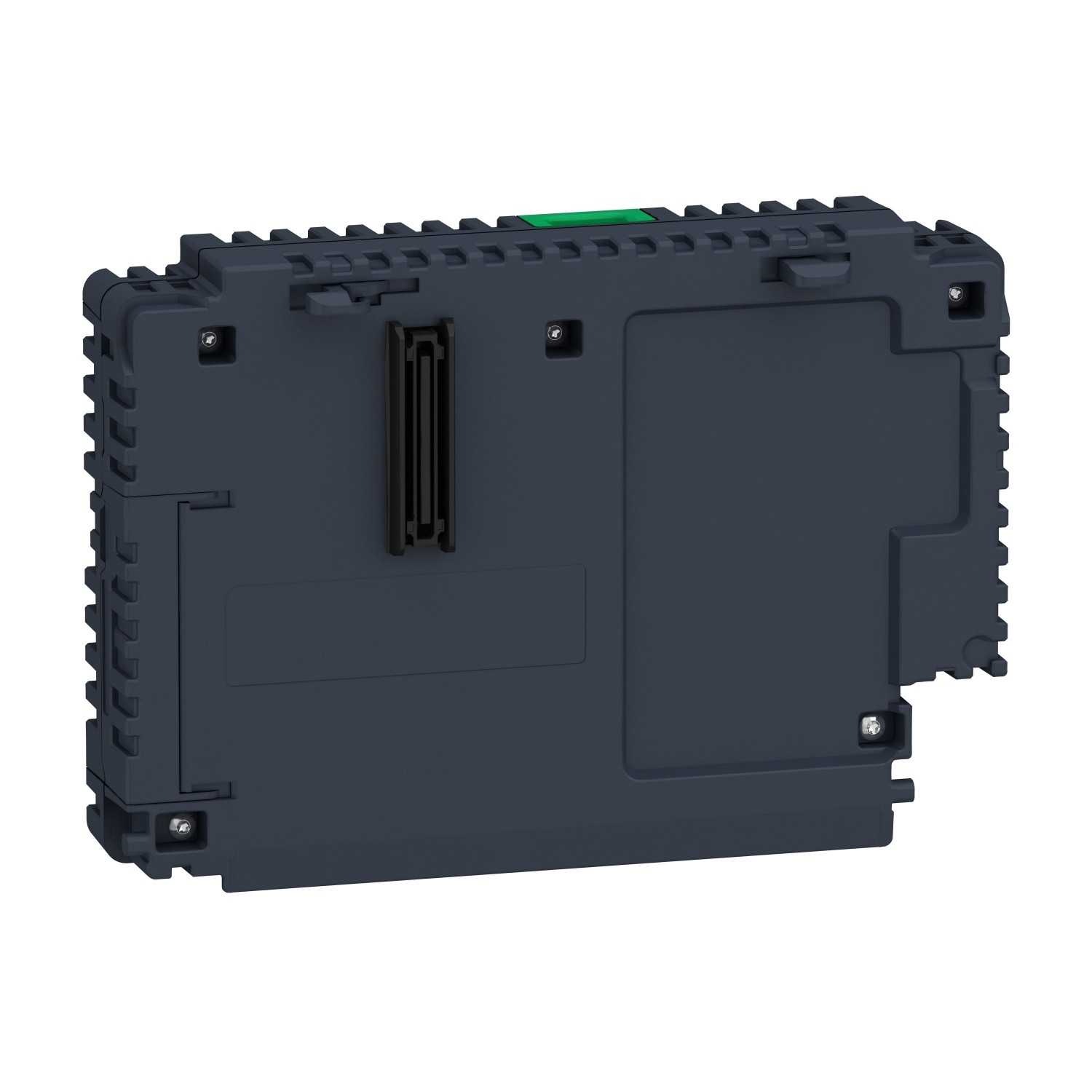

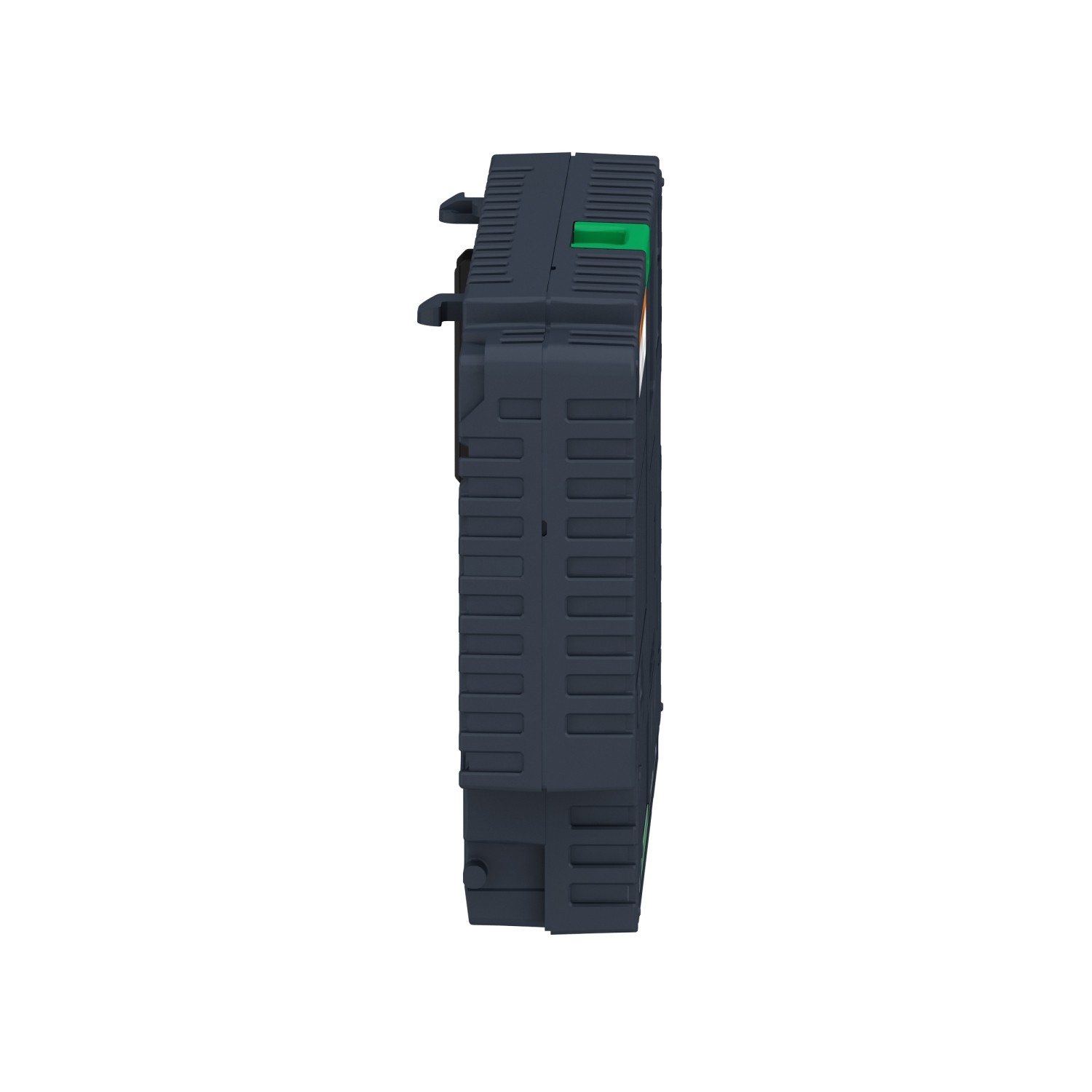

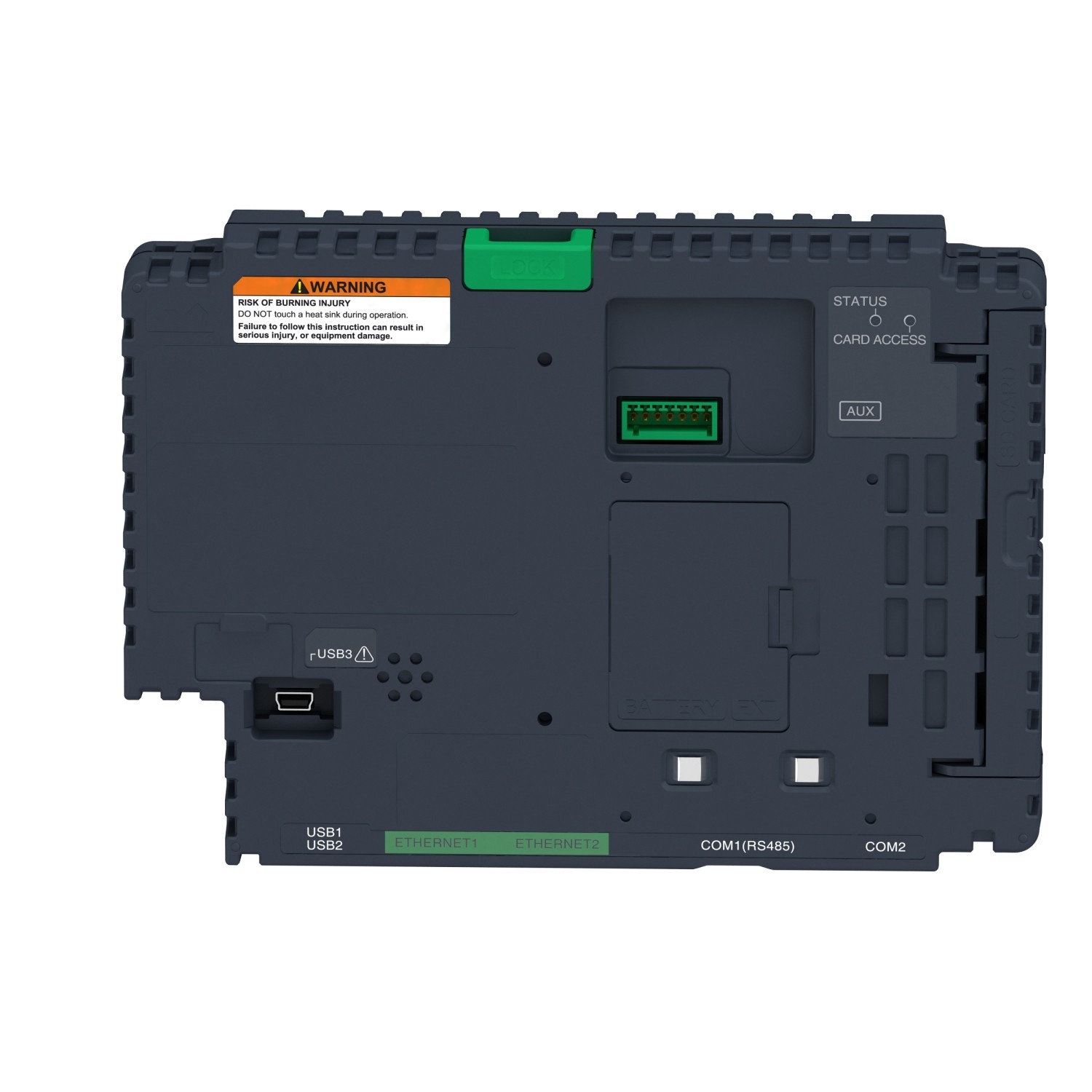

base unit, Harmony GTU, premium box, 1GB SD card

Product Details

Product Tags

Main

Range of Product

Harmony GTU

Product or Component Type

Base unit

Device short name

Premium Box

Range Compatibility

Harmony GTU

[Us] rated supply voltage

12...24 V DC power supply



Complementary

Integrated connection type

Ethernet TCP/IP 2 RJ45
COM1 serial link RJ45 RS485 110...115200 bit/s
COM1 serial link RJ45 RS485 187.5 kbit/s
COM2 serial link SUB-D 9 RS232C/RS422/RS485 110...115200 bit/s
COM2 serial link SUB-D 9 RS232C/RS422/RS485 187.5 kbit/s
Auxiliary port terminal block
Expansion unit fieldbus card
USB 2.0 port 2 USB type A
USB 2.0 port mini B USB

Communication port protocol

Modbus
Modbus TCP/IP
Uni-Telway

Operating system

Harmony

Software package

Vijeo Designer run time

Processor name

CPU RISC 600 MHz

Data storage equipment

1 GB SD card

Port Ethernet

10BASE-T/100BASE-TX/1000BASE-T

Memory description

256 MB RAM internal 2 x 13 mm board)
512 KB NVRAM backup memory

Type of cooling

Natural convection

Width

7.40 in (188 mm)

Height

5.16 in (131 mm)

Depth

1.77 in (45 mm)

Net Weight

1.98 lb(US) (0.9 kg)
