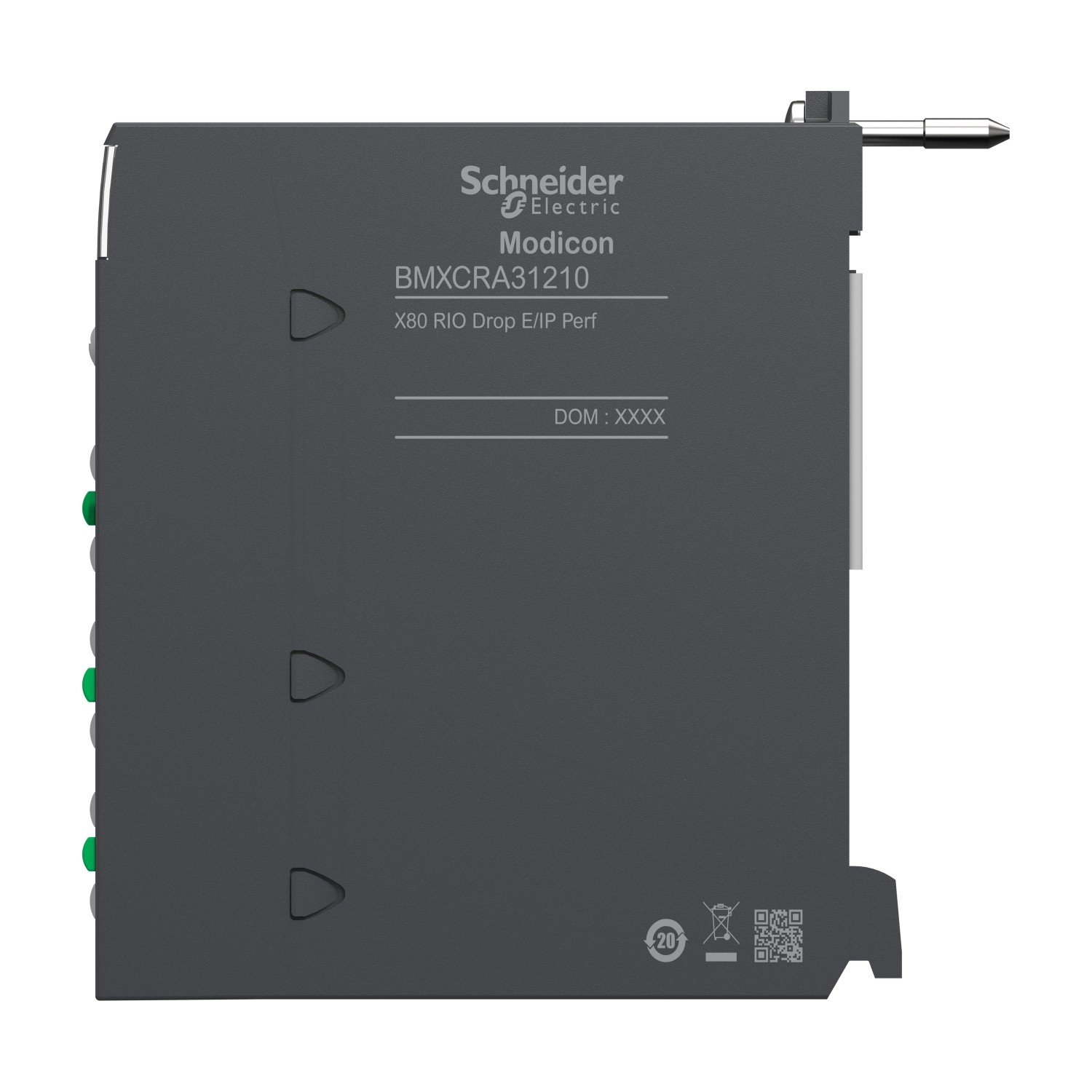

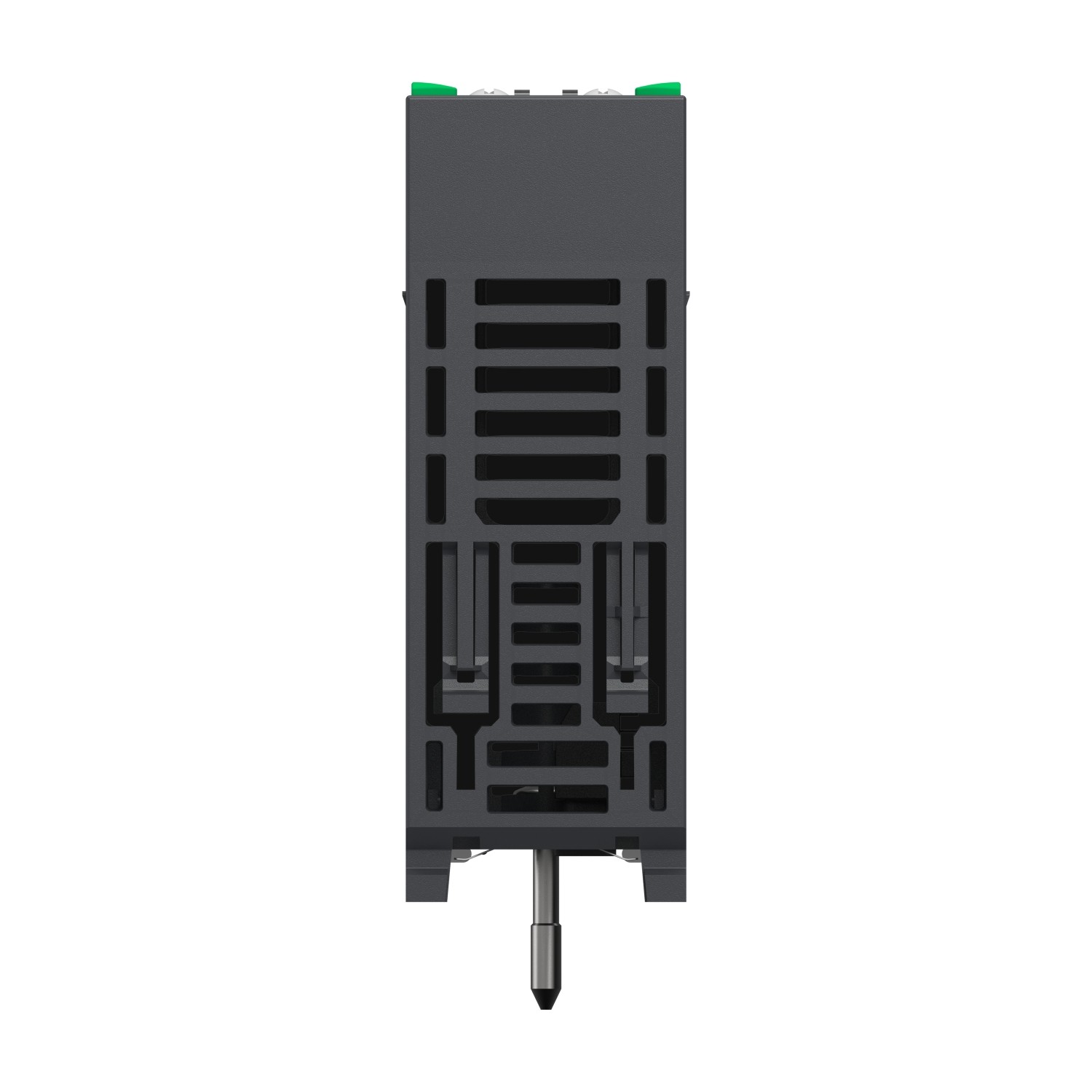

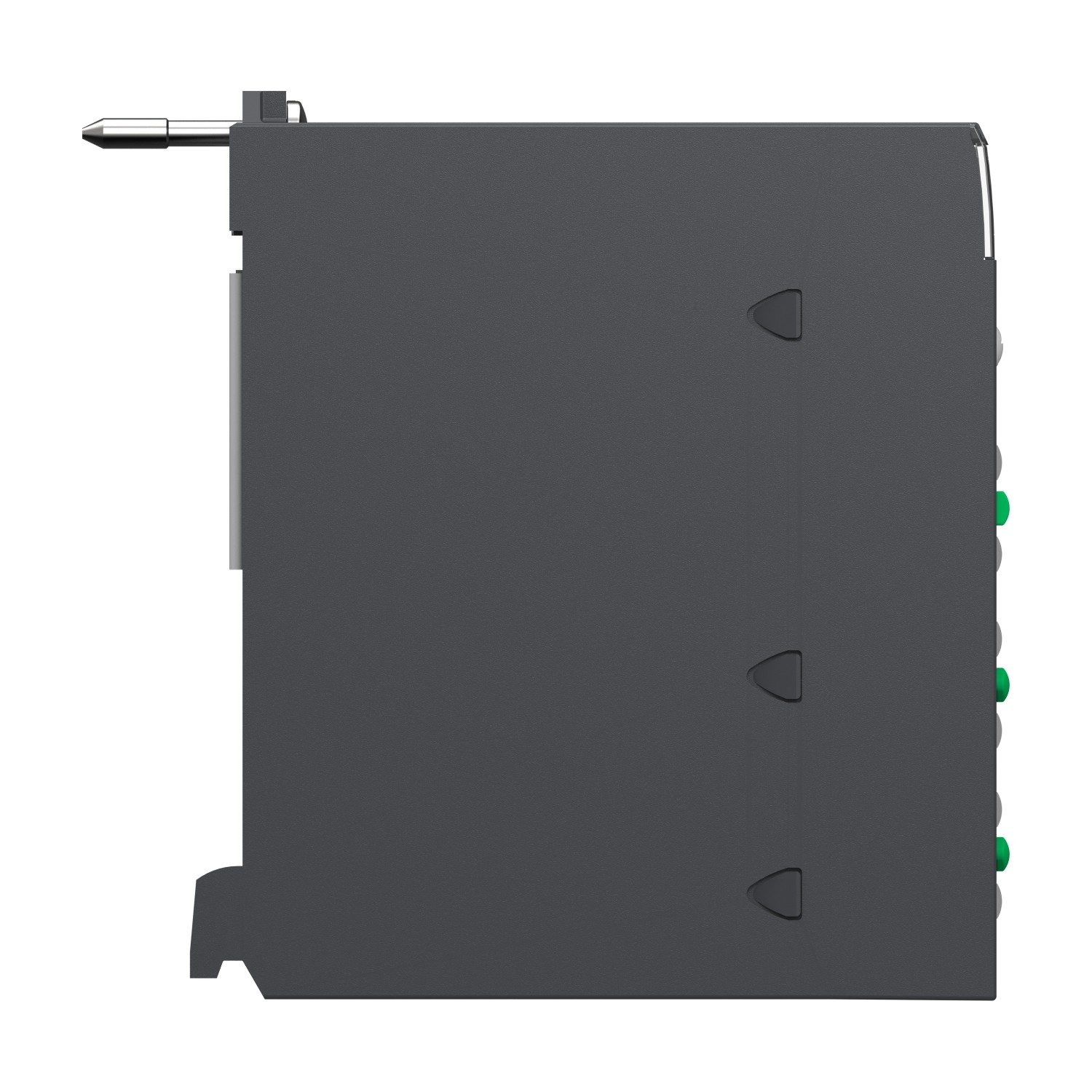

BMXCRA31210

BMXCRA31210
remote IO drop E/IP, Modicon X80, performance, service port, advanced features

Product Details

Product Tags

Main

range of product

Modicon X80

Range compatibility

Modicon M580
Modicon Quantum

Product or component type

I/O expansion module

Device application

X80 Ethernet RIO drop adaptor

Product specific application

For remote I/O modules



Complementary

Bus type

Bus X across the remote backplane

Number of port

3

Integrated connection type

1 port for service or distributed equipment
2 port for Ethernet RIO Network (RSTP)

Communication network type

IPv4 (internet protocol)

communication port protocol

EtherNet/IP

Communication service

Ethernet/IP adapter
RSTP (Ring topology support)
Ethernet RIO network
Quality of Service (QoS)
CIP Explicit messaging (server)
Modbus TCP server for module diagnostics
DHCP client
TFTP client
FTP client
FDR client
SNTP client
SNMP agent

Cybersecurity

Enable/disable communication ports
Syslog protocol support

Connector type

3 RJ45

Exchange mode

Half duplex, full duplex, autonegotiation, auto MDIX

Transmission rate

10/100 Mbit/s

Port Ethernet

10/100BASE-TX

Function available

CCOTF (configuration change on the fly)
Input data is collected and published to the remote I/O head adaptor
Output modules are updated with the data received from remote I/O head adaptor
Diagnostics for remote I/O devices (Device DDT)
Port mirroring
System time stamping
Non-interfering type 1
I/O extension rack

data recording

10 ms time stamps

Topology

Ring

Local signalling

1 LED (green) for module active (RUN)
1 LED (red) for module error (ERR)
1 LED (green/red) for module status (Mod Status)
1 LED (green/red) for network communication status (Net Status)
1 LED (green) for Ethernet link diagnostics (STS)

Current consumption

1200 mA

Input voltage

3.3 V DC

Product compatibility

0…1024 discrete channel
0…256 analog channel
counter module
time-stamping module
SSI encoder interface module
motion control module
frequency input module
AS-Interface module
serial link module
fiber converter modules

module format

Standard

Net weight

0.225 kg

Maximum altitude transport

3000 m

Relative humidity

95 % without condensation

Fixing mode

By screws

Mounting mode

Rack-mounted

Width

32 mm

height

100 mm

Depth

87.5 mm
