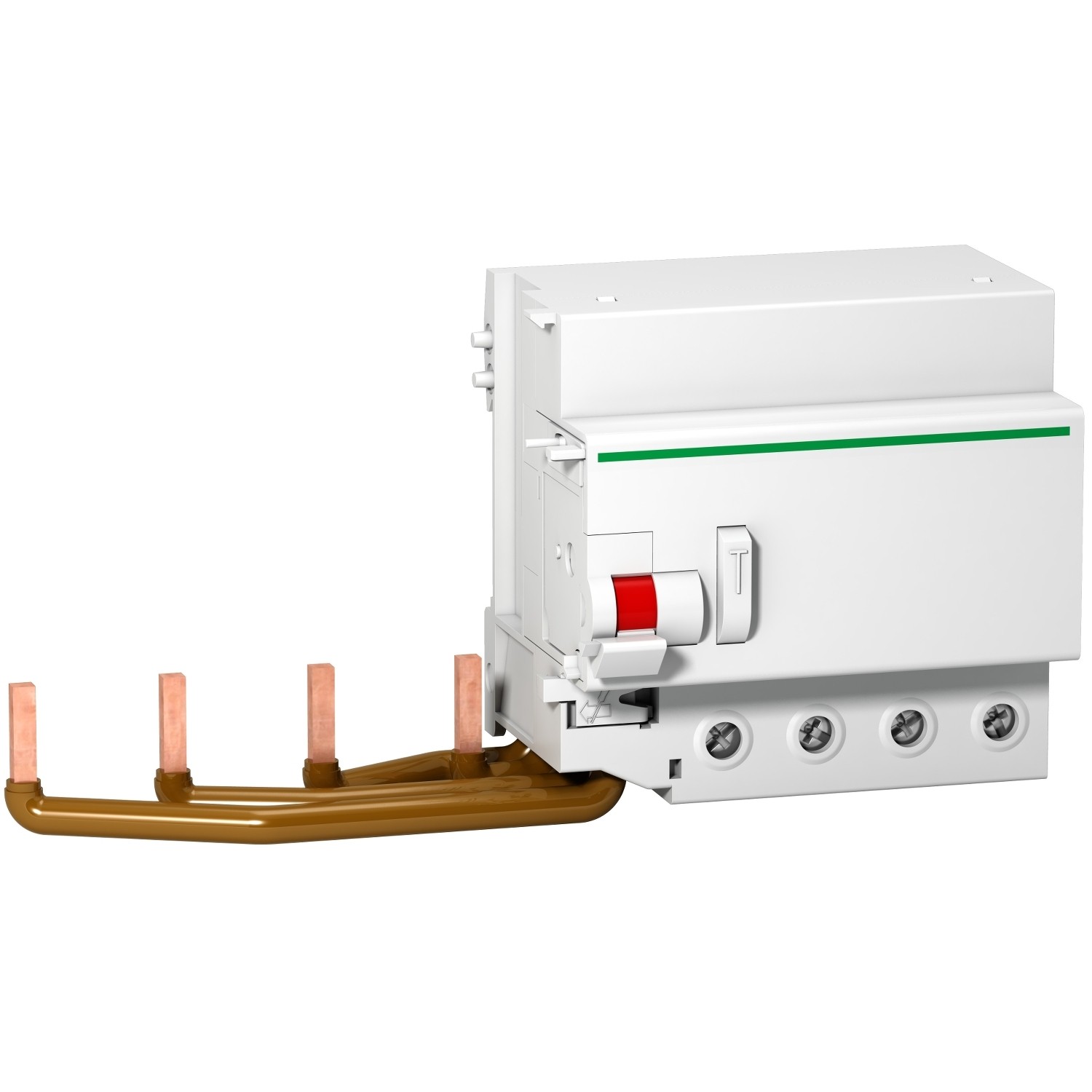

A9N18570
Main | |
Product or component type | Add-on residual current devices |
Device short name | Vigi C120 |
Poles description | 4P |
[In] rated current | 125 A |
Network type | AC |
Earth-leakage sensitivity | 300 mA |
earth-leakage protection time delay | Instantaneous |
Earth-leakage protection class | Type AC |
Complementary | |
device location in system | Outgoer |
Network frequency | 50/60 Hz |
[Ue] rated operational voltage | 230...415 V AC 50/60 Hz |
Residual current tripping technology | Voltage independent |
[Ui] rated insulation voltage | 500 V AC 50/60 Hz conforming to IEC 60947-1 |
[Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-2 |
Mounting mode | Clip-on |
mounting support | 35 mm symmetrical DIN rail |
Electrical connection to mcb | By screws |
9 mm pitches | 10 |
height | 95 mm |
Width | 198 mm |
Depth | 73 mm |
Net weight | 0.58 kg |
Colour | White |
Mechanical durability | 20000 cycles |
Connections - terminals | Tunnel type terminals 1…35 mm² flexible |
Wire stripping length | 15 mm |
Tightening torque | 3.5 N.m |
